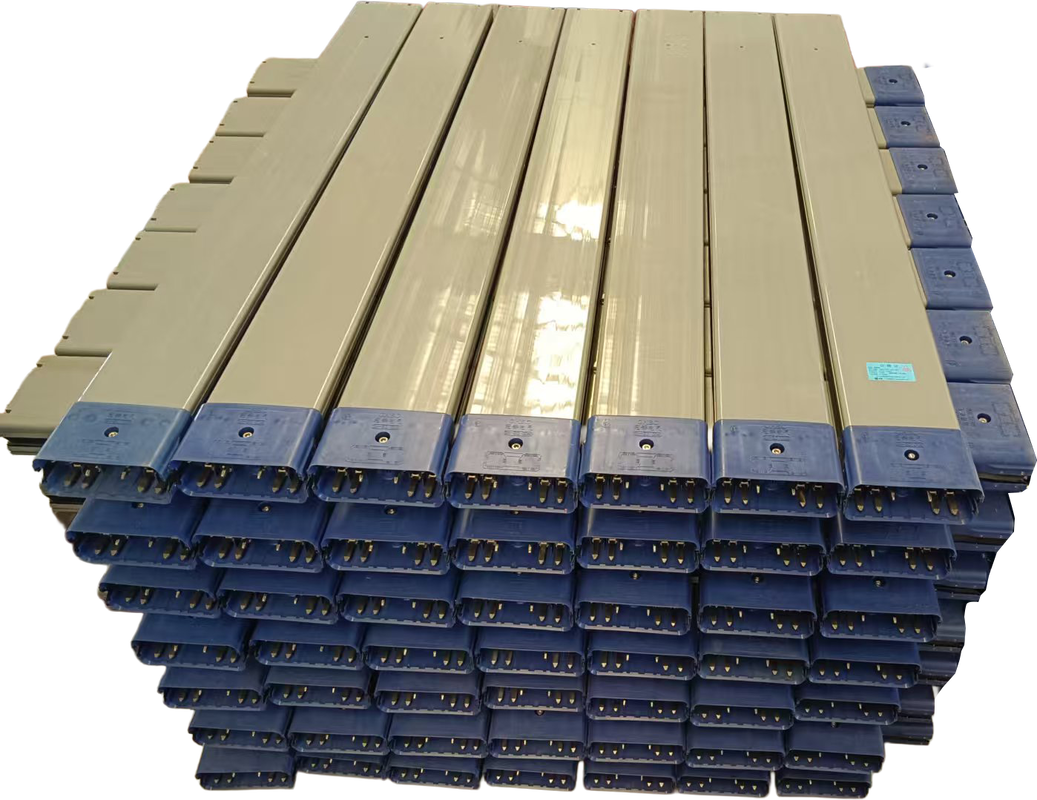

Name: Type A Sliding Contact Line with High-quality Polymer Insulation, Customizable Length, and 12mm² Cross-Section
Brand: Guangdong Guanhua Electrical Equipment Co., Ltd.
SKU: 12-60mm²
Availability: InStock

Home > Products > Sliding Contact Lines >

Type A Sliding Contact Line with High-quality Polymer Insulation, Customizable Length, and 12mm² Cross-Section

High-quality Polymer Insulation Sliding Contact Line

Customizable Length Sliding Contact Line

12mm² Type A Sliding Contact Line

Place of Origin:

China

Brand Name:

GHEC

Certification:

18623Q00414R0S

Model Number:

12-60mm²

Chat Now

Request A Quote

Product Details

Insulation:

High-quality Polymer

Length:

Customizable Per Project Requirements

Cross-sectional Area:

12mm²

Highlight:

High-quality Polymer Insulation Sliding Contact Line

Customizable Length Sliding Contact Line

12mm² Type A Sliding Contact Line

Payment & Shipping Terms

RELATED PRODUCTS

86-0769-89290209

Yanghec2026@163.com

Chat Now

Product Description

Type A Sliding Contact Line

Product Overview

The Type A sliding contact line is designed for reliable power transmission in industrial applications, featuring a robust construction suitable for demanding environments.

Technical Specifications

Model: Type A Sliding Contact Line

Cross Section: 12mm²

Application: Industrial power transmission systems

Product Overview

The Type A Sliding Contact Line is a high‑performance, fully insulated conductor bar designed for reliable power transmission to moving machinery in industrial material handling systems. Featuring a 12 mm² copper conductor core and a premium polymer insulation jacket, this contact line delivers excellent electrical conductivity while providing robust protection against environmental hazards, mechanical wear, and accidental contact. Its modular design and customizable length make it adaptable to virtually any track layout – from short monorail sections to kilometre‑long crane runways.

Engineered for continuous operation in demanding environments, the Type A system ensures stable, low‑impedance current collection for overhead cranes, hoists, automated guided vehicles (AGVs), and conveyor lines.

Key Features

⚡ High‑Conductivity Copper Core (12 mm²)
The conductor is manufactured from high‑purity electrolytic copper (Cu‑ETP), offering a nominal cross‑section of 12 mm² with low electrical resistance (≤ 1.8 Ω/km at 20 °C). This ensures minimal voltage drop and supports current ratings up to 63 A (depending on duty cycle), making it suitable for both light‑ and medium‑duty power applications.

🧪 Premium Polymer Insulation
The extruded insulation layer is formulated from a proprietary engineering polymer that combines excellent dielectric strength (> 20 kV/mm) with outstanding resistance to UV radiation, ozone, oil, grease, and most industrial chemicals. The material is self‑extinguishing (UL94 V‑0 rated) and maintains its mechanical properties over a wide temperature range (–40 °C to +85 °C), ensuring long‑term reliability in both indoor and outdoor installations.

📏 Customizable Length – No Waste
Unlike fixed‑length alternatives, the Type A contact line can be supplied in continuous lengths up to 6 meters per section, and we offer on‑site cutting to your exact track dimensions. This eliminates off‑cut waste, reduces the number of joints, and simplifies inventory management. For longer runs, pre‑fabricated expansion joints and splice kits are available.

🔧 Easy Installation & Reliable Jointing
The profile features a symmetrical geometry with integrated mounting slots, allowing quick attachment to standard support brackets using clip‑on or bolt‑on hardware. Factory‑machined end faces ensure flush, gap‑free connections when using our matched splice connectors, which maintain electrical and mechanical continuity across sections.

🛡️ Robust Mechanical Protection
The polymer insulation also acts as a tough outer sheath, protecting the copper conductor from abrasion, impact, and corrosion. The profile is designed to resist twisting and bending during installation, and its smooth surface minimises wear on the collector shoe, prolonging the life of both the line and the current collector.

🌍 Eco‑Friendly & Maintenance‑Free
The halogen‑free insulation material produces low smoke and no toxic fumes in case of fire. The entire system requires minimal maintenance – periodic cleaning of the conductor surface is usually sufficient to maintain optimal contact.
