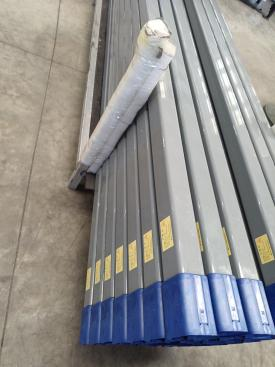

Type B Model B Trolley Conductor Wire for Display Applications

Product Overview
The Type B Trolley Conductor Wire is a versatile, high‑efficiency power distribution solution designed for mobile electrical equipment in industrial environments. Unlike traditional rigid conductor bars, this flexible trolley wire system combines a durable copper‑alloy conductor with a rugged insulating sheath, enabling continuous power delivery to moving loads such as crane trolleys, hoist blocks, automated shuttle cars, and conveyor‑mounted machinery. The integrated Model B Display provides real‑time operational status, making system monitoring intuitive and maintenance proactive.

Engineered for applications where space is limited or where curved / twisted tracks are common, the Type B system offers exceptional flexibility, low contact resistance, and reliable performance over long travel distances.

Key Features
⚡ High‑Efficiency Conductor Core
The conductor is manufactured from a high‑strength copper‑alloy (Cu‑Sn or Cu‑Mg) with a cross‑section optimized for low voltage drop and high ampacity. Depending on the selected gauge, the wire supports continuous currents from 25 A up to 100 A, making it suitable for both light‑duty and heavy‑duty trolley systems. The stranded construction provides excellent flexibility without compromising conductivity.

🔌 Flexible Trolley Wire Design
Unlike rigid bars, the Type B conductor wire is designed to bend around curves with minimum radii as tight as 300 mm (depending on diameter). This allows installation on circular tracks, switch sections, and serpentine layouts without requiring special joints or pre‑bent sections. The outer insulation is formulated to resist abrasion and kinking, ensuring a long service life even under repeated flexing.

📺 Model B Display – Intelligent Monitoring
The unique Model B Display is a compact, panel‑mounted digital indicator that connects directly to the conductor line via integrated voltage / current sensors. It provides clear, real‑time readouts of:

Line voltage (V)

Load current (A)

Power consumption (kW)

Fault alerts (overvoltage, undervoltage, overcurrent, or insulation breakdown)

The display features a bright LED screen with adjustable brightness, IP54 front‑panel protection, and a simple push‑button interface for calibration and alarm threshold settings. This built‑in diagnostic tool reduces downtime by enabling quick identification of power issues.

🛡️ Premium Insulation & Environmental Protection
The wire is jacketed with a tough, halogen‑free thermoplastic elastomer (TPE) or polyurethane (PUR) compound, offering outstanding resistance to oils, greases, solvents, UV radiation, and mechanical wear. The insulation is rated for temperatures from –40 °C to +90 °C (with a high‑temperature variant up to 120 °C) and meets UL / CSA flame‑retardant standards.

🔧 Easy Installation & Modular Connectivity
The wire is supplied in continuous coils or custom‑cut lengths, with factory‑installed end terminals or splice kits available upon request. Installation is straightforward – the wire can be suspended from overhead supports using standard trolley clamps, or routed through cable carriers / drag chains. The lightweight construction reduces structural loading and simplifies handling.

📊 Efficient Power Distribution
The combination of low‑resistance conductor and robust insulation ensures minimal energy losses over long runs. The system supports distributed loads by allowing multiple collector taps along the same wire, making it ideal for feeding several trolleys or tools from a single power source.
