Current Collector with Collector Display for Efficient Electrical Collection

Collector Display

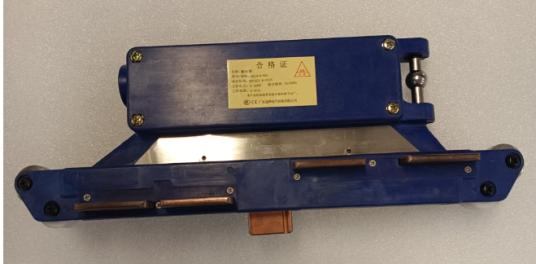

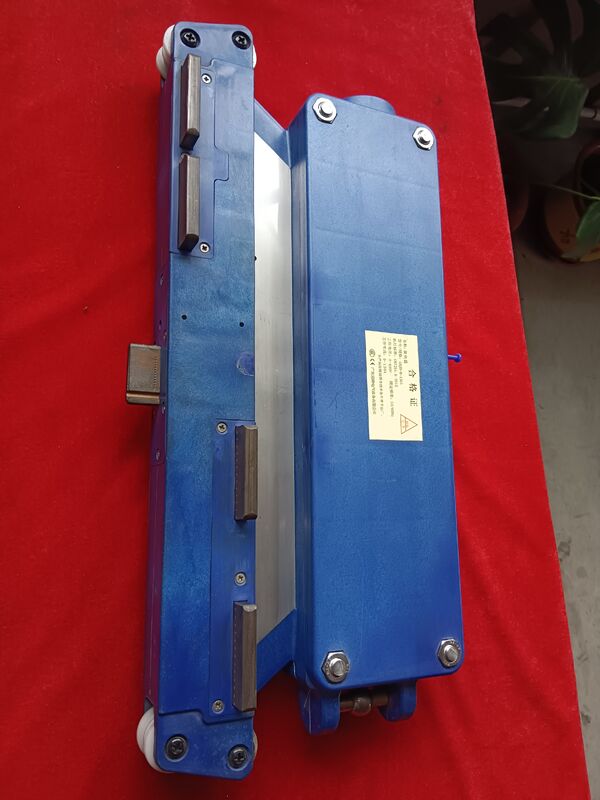

Product Overview
The Current Collector with Collector Display is an advanced, self‑monitoring power pickup unit engineered for sliding contact systems. It combines a high‑performance collector head – featuring low‑wear contact shoes, constant‑pressure springs, and a rugged articulated arm – with an integrated digital display that provides real‑time electrical and mechanical status directly at the point of collection. This unique design enables operators and maintenance teams to instantly verify current draw, contact quality, and system health without requiring external meters or remote diagnostics.

Ideal for overhead cranes, hoists, monorails, AGVs, and conveyor systems, this collector ensures efficient, uninterrupted power transfer from the conductor bar (such as Type A or Type B lines) to the moving load, while the built‑in display transforms routine inspection into a quick, visual check.

Key Features
⚡ Efficient Electrical Collection
The collector head is fitted with high‑grade copper‑graphite or silver‑graphite contact shoes, selected for their excellent conductivity, low contact resistance (≤ 0.5 mΩ), and extended service life. The spring‑loaded arm maintains optimal pressure (adjustable from 2.5 to 5.0 N) against the conductor bar, ensuring stable current transfer even under vibration, track misalignment, or thermal expansion. The collector supports continuous currents from 25 A up to 200 A (depending on shoe size and model), with minimal arcing and voltage drop.

📺 Integrated Collector Display – Real‑Time Intelligence
Mounted directly on the collector housing or on a short flex‑arm, the display is a rugged, IP54‑rated digital panel that shows:

Instantaneous current (A) – for load monitoring.

Line voltage (V) – to detect undervoltage or overvoltage conditions.

Contact temperature (°C) – to warn of overheating due to poor contact.

Running hours – for predictive maintenance scheduling.

Fault indicators – flashing alerts for loss of contact, overcurrent, or insulation degradation.

The display features a backlit LCD with auto‑dimming, simple menu navigation, and programmable alarm thresholds. It can be powered directly from the collected DC or AC supply (24‑240 V AC/DC) without external batteries.

🛡️ Robust Mechanical Construction
The collector body is fabricated from high‑strength aluminium alloy (anodised) or engineering polymer (glass‑filled nylon) – both offering excellent impact resistance and weight savings. The articulated arm employs sealed ball bearings at all pivot points, providing smooth, friction‑free movement in both horizontal (±90°) and vertical (±30°) planes. This allows the collector to accommodate conductor bar height variations, curves, and switch sections without jamming.

🔧 Low‑Maintenance & Long‑Wear Design
The contact shoes are designed for rapid replacement – they slide out without dismantling the main arm. The display automatically tracks shoe wear (via cumulative running hours and resistance trend analysis) and prompts a service reminder when replacement is due. The entire unit requires only periodic cleaning of the shoe surface and inspection of the spring tension.

🔌 Flexible Mounting & Connectivity
The collector attaches to the mobile equipment via a standard flange or clamp‑on base, with multiple bolt‑hole patterns to suit various trolley frames. The power output is brought out through a heavy‑duty cable gland (PG21 or M25) or a quick‑disconnect connector. The display connects to the collector’s internal sensors via a shielded harness; an optional wireless transmitter (Bluetooth or ZigBee) can send data to a central control room.

🌡️ Wide Operating Range & Environmental Resistance
Sealed to IP54 (with IP65 optional), the collector operates reliably in dusty, humid, or oily environments. It withstands temperatures from –30 °C to +70 °C and is tested for salt spray, UV, and chemical exposure, making it suitable for both indoor factories and outdoor ports.
