Fixed Bracket for Sliding Contact Line Display and Fixing Support

Product Overview

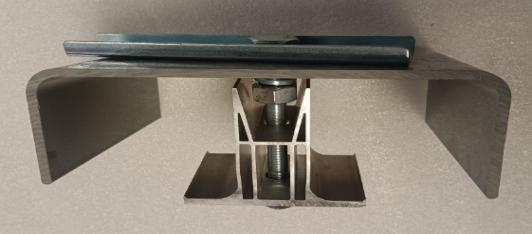

The Fixed Bracket for Sliding Contact Line Display and Fixing Mounting Bracket is a rugged, precision‑engineered support accessory designed to securely mount both the sliding contact line (conductor bar) and its associated display/monitoring unit in a single, integrated assembly. This dual‑purpose bracket eliminates the need for separate mounting structures, saving space, reducing installation time, and ensuring perfect alignment between the conductor bar and the display panel that shows real‑time electrical parameters (voltage, current, fault status, etc.).

Built for heavy‑duty industrial environments – including crane runways, conveyor lines, and automated material handling systems – this fixed bracket provides a stable, vibration‑resistant platform that keeps the contact line at the correct height and orientation while placing the display within easy view of operators or maintenance personnel.

Key Features
🔩 Integrated Dual‑Mount Design
The bracket features two dedicated mounting zones:

Upper section: Pre‑drilled holes and clamping slots for attaching the sliding contact line profile (compatible with most common conductor bar types, including Type A, Type B, and standard EN/ISO profiles).

Lower section: A flat, reinforced mounting plate with multiple threaded inserts and cable pass‑throughs for securing the display unit (e.g., the Model B Display or any standard panel‑mount indicator).

This integrated approach ensures that the display is always positioned directly adjacent to the conductor bar, facilitating quick visual checks without requiring operators to look away from the power rail.

🛡️ Heavy‑Duty Construction
Manufactured from hot‑dip galvanised steel (HDG) or stainless steel (304/316), the bracket offers exceptional strength, corrosion resistance, and long‑term durability. The base plate is 6 mm thick, with integral stiffening ribs that prevent deflection even under the combined weight of the conductor bar, cable bundles, and display unit (total load capacity up to 50 kg).

📐 Precise Alignment & Adjustability
Although designated as a “fixed” bracket, it incorporates slotted mounting holes and shim‑adjustable risers that allow fine‑tuning of:

Vertical height (±10 mm) – to match the collector shoe engagement level.

Horizontal tilt (±2°) – to compensate for track unevenness.

Lateral offset (±5 mm) – for precise centering of the conductor bar.

Once adjusted, the bracket locks firmly into place using high‑strength clamping bolts, ensuring no drift over time.

🔌 Integrated Cable Management
The bracket includes built‑in cable trunking or clip‑on tie points that route power cables (from the contact line) and signal cables (to the display) neatly along the same support structure. This reduces clutter, prevents cable chafing, and simplifies maintenance access. For safety, all cable paths are designed to avoid sharp edges and are protected by grommets or plastic liners.

🧰 Easy Installation & Versatile Fixing
The bracket can be mounted to various surfaces:

Concrete floors or walls – using expansion anchor bolts.

Steel structures – via welding or bolted connections.

Overhead beams – with optional suspension hangers.

Clear installation markings and a pre‑assembled hardware kit (bolts, washers, and shims) are included to speed up on‑site assembly.

👁️ Optimised Display Viewing Angle
The display mounting plate is angled at a 15° upward tilt (standard) to reduce glare and improve readability from ground level. The plate also supports 360° rotation for side‑mounting or ceiling‑mounting configurations, ensuring that the display is always oriented toward the operator’s normal line of sight.
