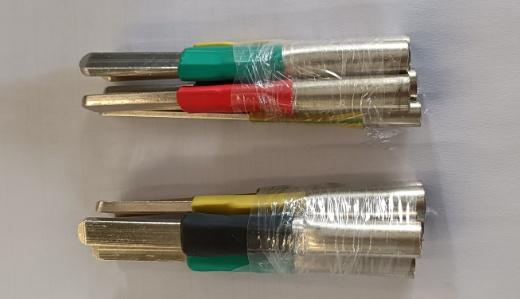

Incoming Line Plug Electrical Plug with Display Feature

Product Overview
The Incoming Line Plug with Display Feature for Electrical Connections is a high‑performance power feed connector designed to safely and efficiently bring external mains power into sliding contact line systems, busbar trunks, or industrial distribution rails. Serving as the primary entry point for electrical energy, this plug combines a rugged, arc‑resistant connector body with an integrated digital or LED display that provides instant visual confirmation of power status at the very point of entry.

Unlike conventional blind plugs that offer no local indication, this intelligent incoming line plug allows operators and maintenance personnel to verify voltage presence, phase balance, and load current without opening panels or using handheld meters. This significantly enhances safety during installation, commissioning, and routine servicing – especially in large plants where the power feed point may be far from the main control room.

Key Features
🔌 Robust Electrical Connection for Mains Input
The plug is manufactured with high‑purity copper‑alloy terminals (silver‑plated or tin‑plated) that ensure low contact resistance (≤ 0.2 mΩ) and high current‑carrying capacity. The terminal design accommodates cable lugs up to 95 mm² and supports continuous currents from 63 A up to 400 A, depending on the model. The plug features a secure, twist‑lock or screw‑clamp mechanism that maintains constant pressure, preventing loosening due to vibration or thermal cycling. This ensures a stable, arc‑free connection that minimises energy losses and heat generation at the critical feed‑in point.

📺 Integrated Display – Instant Power Intelligence
The built‑in display is a rugged, IP54‑rated digital panel (or high‑brightness LED bar‑graph) that provides real‑time readouts of:

Line voltage (V) – indicating the incoming supply level, with under‑/overvoltage alerts.

Load current (A) – showing the total current drawn through the feed point.

Phase presence – individual status LEDs for L1, L2, L3 (3‑phase systems) confirm that all phases are active and balanced.

Power‑on indication – a large, illuminated green/red status ring that is visible from a distance, signalling that the line is energised.

The display is self‑powered from the incoming supply (80‑690 V AC / DC) and requires no external batteries. Programmable alarm thresholds can be set via onboard push‑buttons, and an optional alarm relay provides remote annunciation to a central control system.

🛡️ Heavy‑Duty & Safety‑Optimised Construction
The housing is fabricated from high‑impact, glass‑fibre reinforced polyamide (PA66) or die‑cast aluminium with an insulating powder coating – both offering excellent dielectric strength (> 20 kV/mm) and fire retardancy (UL94 V‑0). The plug is designed with integrated finger‑safe shrouds and a spring‑loaded cover that automatically seals the terminal compartment when the plug is disconnected, preventing accidental contact with live parts. An IP65 protection rating (standard) makes it resistant to dust, water jets, and many industrial chemicals.

🔧 Simple Installation & Flexible Cabling
The plug features a swing‑open terminal housing that allows easy access for cable termination without disassembling the main body. Wide cable entry ports (M32 to M50) with dual‑sealing glands accommodate various cable diameters and provide excellent strain relief. The plug is designed for both top‑entry and bottom‑entry cabling, allowing flexible integration into existing power frame layouts. A built‑in earth terminal with a clearly marked PE symbol ensures correct grounding.

📐 Broad Compatibility
The incoming line plug is available with multiple mounting flanges to mate with standard power frame receptacles (Type A, Type B, or custom busbar interfaces). Adapter plates are offered for retrofit projects, enabling replacement of older feed plugs without modifying the existing conductor rail system.

🌡️ Wide Environmental Tolerance
Rated for operation from –40 °C to +85 °C (standard) and up to +120 °C (high‑temp variant), the plug maintains stable electrical performance in extreme environments. Its UV‑stabilised housing and corrosion‑resistant terminals make it suitable for both indoor and outdoor installations, including coastal and desert locations.
