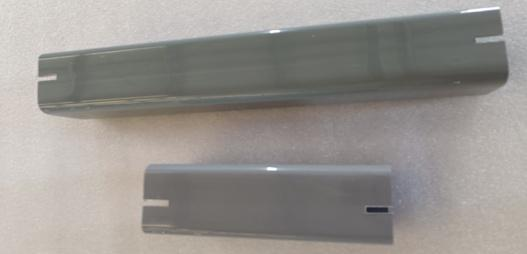

Sliding Wire Bottom Joint with Display for Bottom Section

Product Overview
The Sliding Wire Bottom Joint with Display for Bottom Section is a specialized connecting component designed for the lower (bottom) segments of sliding contact line systems. This joint serves two critical functions: it provides a secure, low‑resistance electrical and mechanical connection between adjacent conductor bar sections at the bottom of the power rail run, and it incorporates an integrated digital display that monitors real‑time electrical parameters specifically for that bottom section. This is particularly useful in applications where the bottom section is subject to higher moisture, dust accumulation, or mechanical stress – such as at floor‑level conveyor tracks, pit‑mounted systems, or the return loops of overhead crane circuits.

By combining robust conductor joining with local visual diagnostics, this bottom joint eliminates the need for separate monitoring points, enabling rapid troubleshooting and reducing downtime in critical power distribution networks.

Key Features
🔗 Heavy‑Duty Sliding Wire Connection
The joint is fabricated from high‑conductivity copper alloy (Cu‑ETP or Cu‑Sn) with precision‑machined contact surfaces that ensure a tight, gas‑tight fit when mated with the conductor bar ends. The connection uses a sliding wedge or bolted clamp mechanism that accommodates thermal expansion and contraction while maintaining consistent contact pressure. This design minimizes joint resistance (≤ 0.3 mΩ) and prevents arcing or hot spots, even under high continuous currents up to 200 A.

📺 Integrated Display for Bottom Section Monitoring
The display is a compact, hermetically sealed digital panel mounted directly on the joint housing. It continuously shows:

Line voltage (V) – to verify power presence at the bottom section.

Load current (A) – indicating the actual current drawn through that specific joint.

Joint temperature (°C) – early warning for loose connections or overloading.

Contact status – a green/red indicator that signals whether the mechanical clamp is properly engaged.

The display is backlit for visibility in dim environments and features programmable alarm thresholds for overcurrent, undervoltage, and overtemperature. An optional relay output can trigger external warning lights or PLC inputs.

🛡️ Rugged & Corrosion‑Resistant Construction
The housing is manufactured from die‑cast aluminium with an epoxy powder coating (or stainless steel 304 for aggressive environments), providing excellent resistance to impact, moisture, dust, and industrial chemicals. The joint is sealed to IP65 as standard, making it suitable for wash‑down areas, outdoor installations, and high‑humidity conditions. All exposed fasteners are made of stainless steel.

🧩 Easy Installation & Maintenance
The bottom joint is designed for quick assembly without specialized tools. The conductor bar ends are simply inserted into the joint’s tapered slots, and the clamp is tightened with a single hex key (supplied). The display module connects via a plug‑and‑play cable harness – no soldering or complex wiring is required. For maintenance, the display can be replaced without disturbing the electrical connection, and the joint can be opened for cleaning or shoe inspection.

📐 Versatile Compatibility
The joint is available in multiple sizes to fit standard conductor bar profiles (Type A, Type B, or 12‑40 mm widths). It also includes adaptor shims to accommodate different bar heights. The bottom‑section designation means it is optimized for the lower end of the power rail, where the joint may also serve as an end cap or transition piece to a curved section.

🌡️ Wide Thermal & Electrical Range
Rated for operation from –40 °C to +85 °C, the joint maintains stable performance across extreme temperatures. Its high‑temperature insulation (PTFE‑based) and silver‑plated contact surfaces ensure low contact resistance even after many thermal cycles.
